Code: HI-21/0713-2000-WH

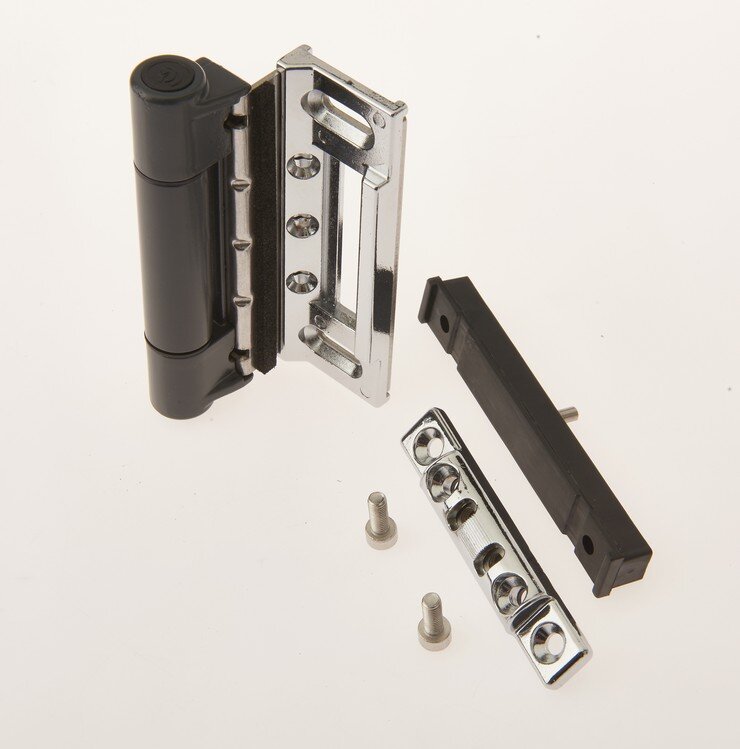

3D ATHENA DOOR HINGE WHITE
3D ATHENA DOOR HINGE WHITE
Features:
- 3D adjustment
- Compression, height and lateral adjustment achievable with the door closed (Full Float Technology for visual alignment)
- No unsightly gaps visible following adjustment
- PAS 24: 2016 compatible as part of a door assembly
- Double knuckle construction for increased load bearing
- Fitter and installer friendly (Lift On, Lift Off door design)
- One product fits all standard euro groove systems
- Packaging available to suit high volume separated flow line assembly
- Available in White, Black, Brown Oak (UV stabilized), Polished Chrome, PVD Gold and Satin Silver, (any RAL finished available upon request)
- Guarantee* 10 years mechanical
- Patented, unique design
- Integral interlocking security hooks available
- White Finish
- Zinc alloy
- Stainless Steel - Grade 430
- Plastic - GF Nylon, UV stabilized ABS and Acetal
- Corrosion tested to BS EN 1670
- Painted finishes Grade 5, plated finishes Grade 4
- Alternatively 1,000 hours anti-corrosion on special painted finishes
- Conforms to EN1191 - tested to 100,000 cycles
- Can achieve PAS 24: 2016 as part of a door assembly
- Height: +/- 4mm
- Compression: +/- 2.00mm
- Lateral: +/- 4mm
- 3 hinges carry 100kg
