Code: BA-22/RA
Bar Tilt Restrictor

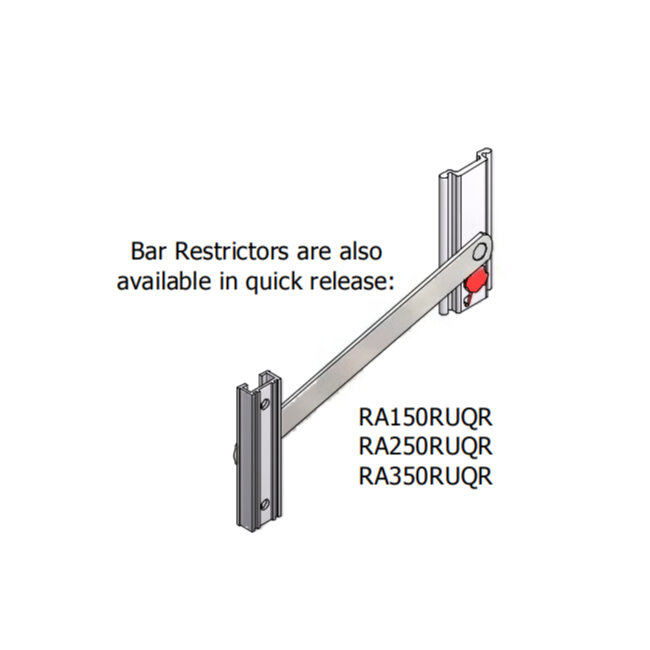

The vertical sliding bar tilt restrictors allow the retention of sash weights up to 35kg whilst tilted in for cleaning purposes.
They have a robust stainless steel arm construction which is retained within the jamb for maximum load retention. The in-built bi-axial anti-jam device enables smooth sash re-engagement.

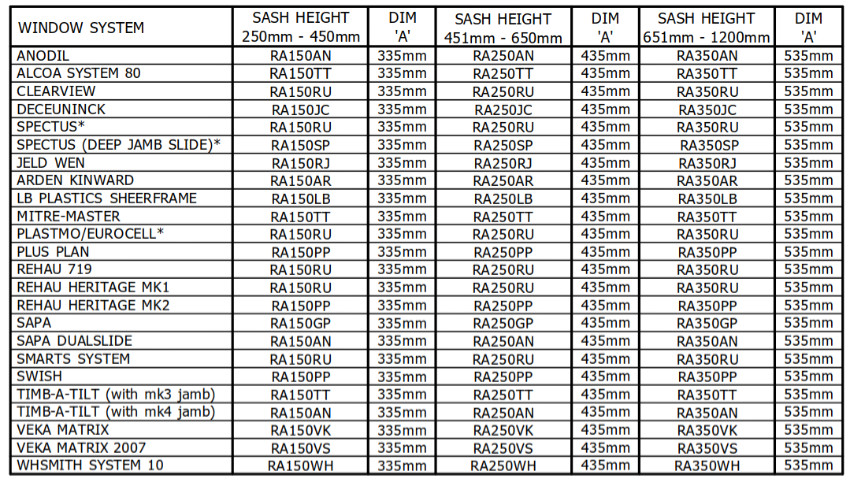

They are available in three different lengths dependant on the height of the sash.
They are as follows:
- Sash heights 350mm - 450mm = 150mm Bar Restrictor
- Sash heights 451mm - 650mm = 250mm Bar Restrictor
- Sash heights 651mm - 1200mm* = 350mm Bar Restrictor
The RA150SP, RA250SP & RA350SP should be used for Spectus and Plastmo/Eurocell when security jamb packers are used.
