Code: DH-21/SPLLGOLBP

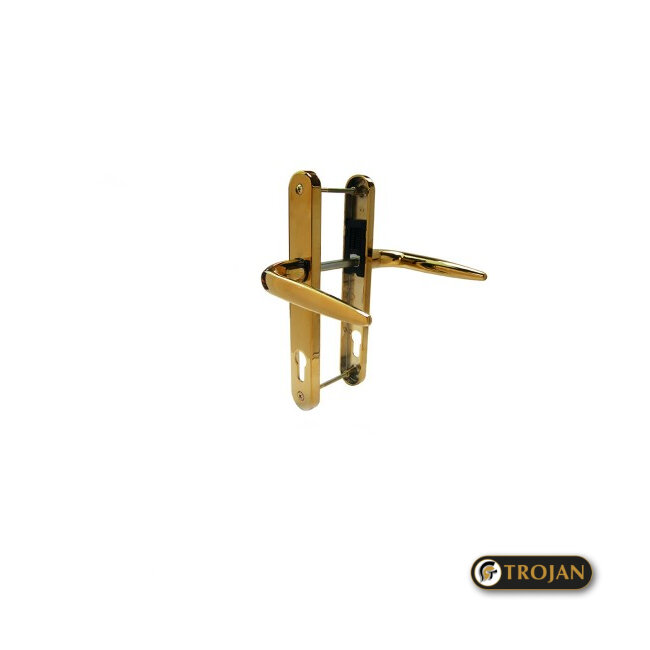

SPARTA DH (LL) lever lever GOLD LBP
SPARTA DH (LL) lever/lever GOLD LBP
Features:
- Ergonomic design with sleek Sparta aesthetics
- Suited to the Sparta Espag Handle and Tilt and Turn handles
- Incorporates patented spring cassette which eliminates the 'drooping handle' effect
- Available in a full choice of finishes which includes Gold (PVD), Polished Chrome, White and Black (other finishes are available upon request)
- Different back plate variants available to suit most locks
- Supplied complete with spring cassette, fixing screws and spindles
- Lever Lever and Lever Pad options available
- Guarantee* 10 years mechanical
- PZ 92mm
- Screws 210mm
- Zinc/ aluminum die cast components
- Plastic parts - Nylon 66
- Door thickness 44mm-75mm (suitable spindle lengths are available upon request)
- Cylinder aperture - Standard Euro cylinder
- Corrosion tested to BS EN 1670
- Painted finishes Grade 5, plated finishes Grade 4
- Abusive load test to BS 6462
- Cycle tested to 50,000 cycles
- Conforms to BS1906
- 10 year* mechanical guarantee
